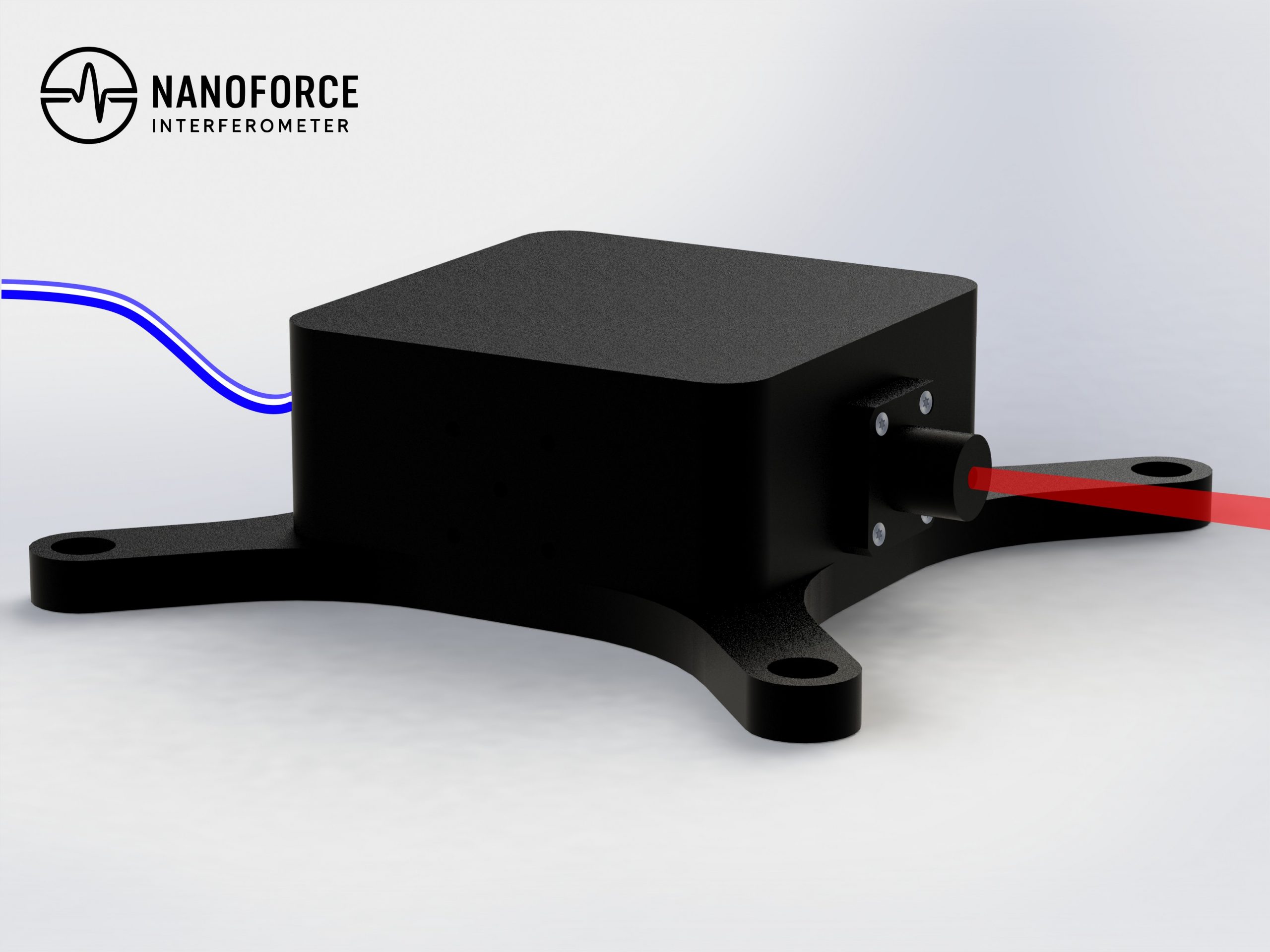

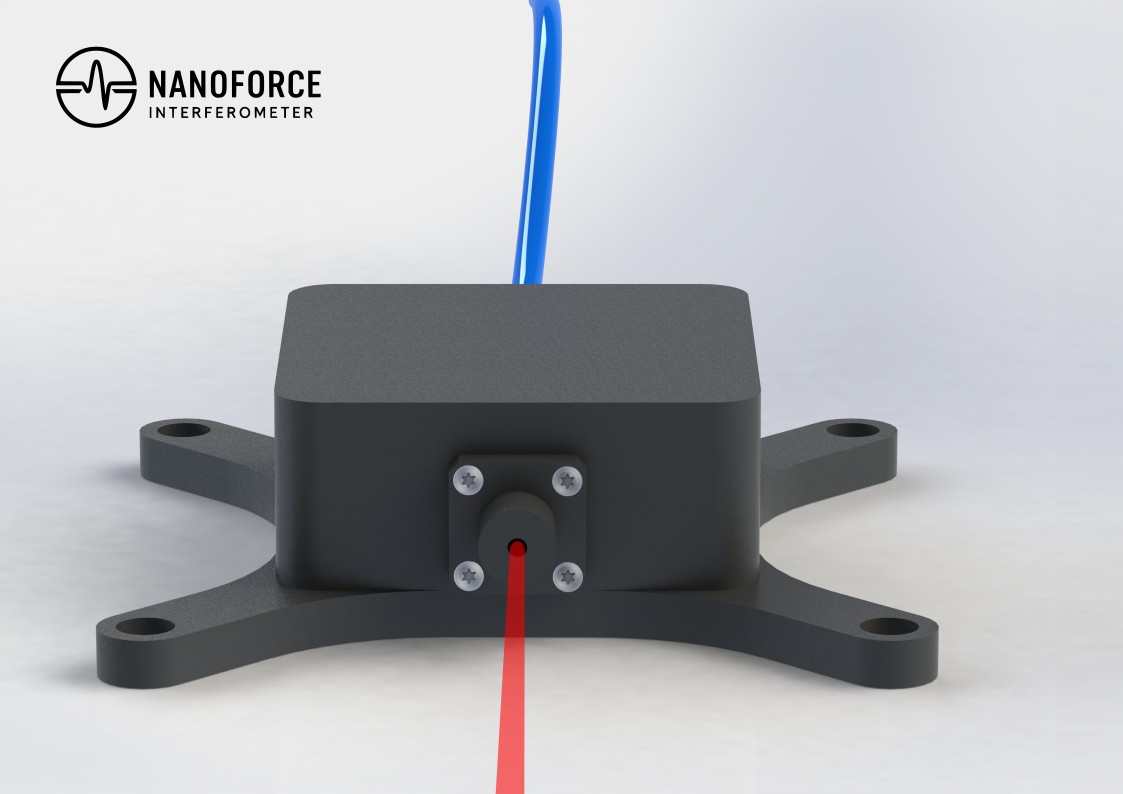

LASER INTERFEROMETERS

Key Features

  • Modular Design Suited to Laboratory and Industrial Usage

  • Breadboard Mount & Kinematics Mount available

  • Full Metal Construction

  • High Precision Position Sensing (< 1nm resolution)

  • Industry Compatible (-20°C to 85°C)

Applications

  • Sensor Development
  • High Precision Valve Development
  • MEMS Development
  • Flexure Development
  • Piezo Actuator Development
  • CNC Equipment Stage Calibration
  • ElectroMagnetic/ElectroMechanical translation stage calibrations
  • Microscopy
  • Thermal Expansion Studies
  • Vibration Dynamics Studies

Technical Specifications

  • Laser Wavelength (λ):
  • Beam Divergence:
  • Max Beam Diameter:
  • Working Distance:
  • Linear Resolution:
  • Laser Power:
  • Mounting Options :
  • 650 nm
  • < 100 mRad
  • 5 mm
  • 10mm to 500mm
  • < λ/1000 With Electronics Data Acquisition Modules and Bundled Software. ~ λ/2 without electronics read head
  • 500 µW
  • Kinematics Mount , Breadboard Mount, 1” & 0.5” optics mount.

for more information on the instrument and demo please contact us.

If you represent industry or academia and need to try the instrument, please contact our sales person.

Call : +91 62 82 29 21 20  |  Email : info@bigtreelabs.com

Download NanoForce Flyer
